Diesel Generator Set In Parallel

Max power of unit diesel generator set is 2500KVA,however some users need more than that.In accordance with the actual situations and the needs of the user,SUTER POWER built diesel generator automatic parallel connection system to operate two or more than two diesel generator sets in order to meet the needs.
This Parallel system consist of deep-sea DSE7510 control module and auxiliary repay imported from UK,high-quality electric components and the intelligent breakers.All of them are elaborately designed and meticulously made by SUTER POWER professional engineers.
并机示意图

When parallel connection of two or more sets is completed,the sets begin to operate with load.when the internal power distribution unit of the UK DSE7510 control module acts on the speed regulation system,it conducts the load distribution according to the proportion as set by the program in advance.

The control system of the parallel operation cabinets adopts the built-in power distribution control unit of UK DSE7510 control module as the full automatic load control which can detect the three-phase output power(voltage & current) of the diesel generators.It can communicate with various controllers and calculate the interior power and then output a DC speed regulation control signal to act on the speed regulation control system of the engines accordingly to control the rotating speed of the diesel generator sets.In this matter,the fuel consumption is under control so that the output of active power of the diesel generator sets is controlled and the balanced power among the diesel generator sets is maintained.At the same time,the control module can output a DC voltage regulation control signal to act on the voltage regulation control system of the diesel generator sets so as to control the output of reactive power of the diesel generator sets by controlling the voltage and to ensure the balanced power among the diesel generator sets.
UK DSE7510 control module within each parallel operation cabinet can transfer the load level information of every single diesel generator set from one another via its parallel connection communication through the parallel lines. It can automatically control the rotating speed of the generator sets and can automatically distribute the load according to the proportion as set in advance.
Meanwhile, UK DSE7510 control module is equipped with the function of monitoring the positive power and protection of the negative power. It can setup the maximum output power of the sets manually, protect the reverse consumption power (reverse power) and provides a complete power protection for the diesel generator sets.

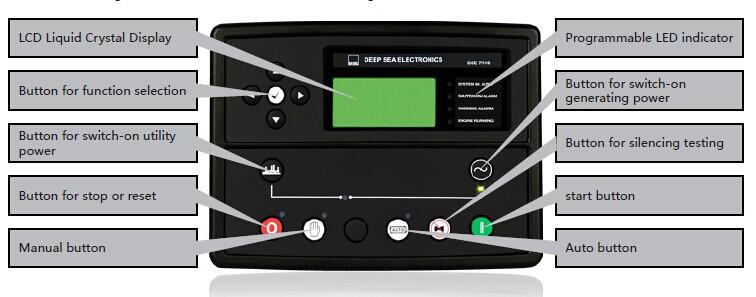

机组控制器

Diesel Generator Set In Parallel
