Silent Generator

silent generatorSilent diesel gen-sets is a result of long-term exploring and research by our professional engineers. We use silent canopy to reduce the noise which makes gen-sets reach the noise control EU standards of 2000/14/EC.
Silent canopy use the thick steel plates and latest advanced sound-absorbing materials. The ventilation system for gen-sets adopts circulating-wind type which could effectively reduce the noise. Louvers are mounted on the canopy intake to resist rain water and foreign materials. A particular high performance muffler is also adopted between the gen-sets and base frame. Gen-set installed with several absorbers which can further reduce the noise. Silent canopy has a combination structure equipped with maintenance door and instrumentation door which allows easy installation, observation and maintenance. The noise can be reduced to 65 to 75 Db (at LP 7M) depending on different power ratings of gen-sets.
Silent canopy muffler is in side of the canopy and got very solid construction which makes it difficult to cause damage in hostile and harsh environments. Each part of the canopy is equipped with exchangeable parts which can be changed on the work site easily.
silent container generator
High-prevent-corrosion materials;
Stainless steel lock and hinge;
Zinc-planting and stainless steel button;
Steel fabric, the surface was treated with phosphorus, and then sprayed with polyester powder;
Easy for maintenance;
The door was installed on both sides of the soundproof;
The door was supported by pneumatic spring-loaded doors;
Outlet of lube and cooling water drain-pipe was installed outside the canopy;
Security protective measures;
The observation window of control screen can be installed on the door of control panel box;
Movable easily; identifiable hoisting aperture;
Protection devices for cooling fans and batteries;
Open the side-door then add fuel and replace batteries;
Silencer system is completely inside the soundproof;

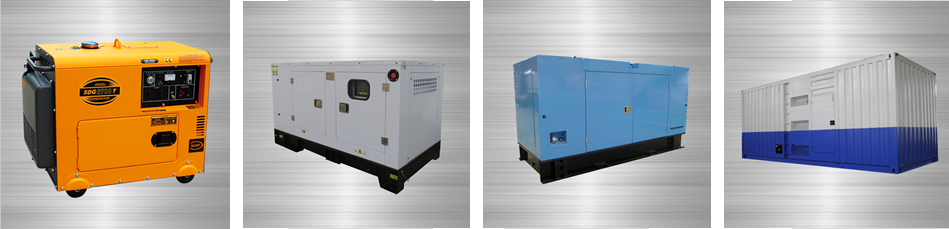

 And we also supply high-quality Trailer mounted gen-sets and vehicle carried gen-sets and weatherproof canopied gen-sets etc.
silent power generator
Containerized Diesel Generator
Containerized Diesel generators are attractive,robust,easy to transport and deliver effective acoustic performance.These container packages are based on standard ISO 20ft and 40ft high cube shipping containers for ease of transport by sea or land。
Containerization Diesel Generators are fully welded and fitted with rock wool and a perforated zintec steel lining to achieve greater acoustic performance.The internally mounted silencers are custom designed to reduce exhaust noise.A two-pack polyurethane paint system provides a durable finish and all doors are fitted with high-security locks.

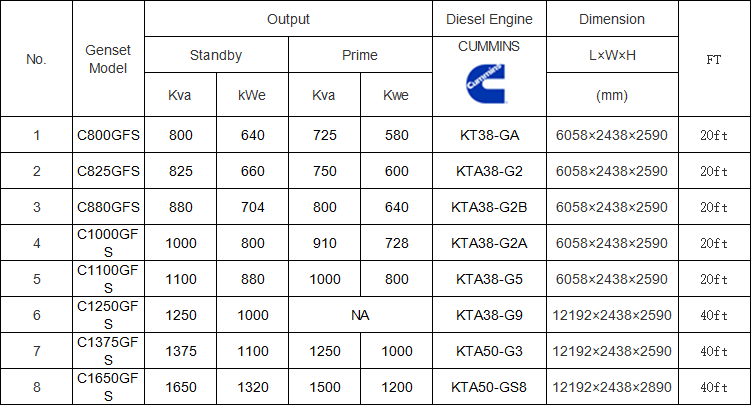

cummins静音数据图片

perkins静音数据图片

mitsubishi静音数据图片
